Seymour-Capilano Twin Tunnels Filtration Project

AMIX High Shear Colloidal Paddle Mixer (ACM) 4000 was built to produce a grout slurry for mixing with aggregates that was high in cementitious powder with a low water solids ratio producing a flowable, pumpable mix.

Explore Project
Client
Frontier-Kemper
Products
AGP-Hurricane
Services
Design, Engineering and Fabrication of High Shear Colloidal Paddle Mixing System
Completion Date
November 2013
Seymour-Cap Partnership, a Joint Venture of Frontier-Kemper Constructors, Aecon, and Shea - North Vancouver, British Columbia, Canada

Project Description:

The Seymour Capilano Twin Tunnels Filtration Project is designed to provide filtration and ultra-violet disinfection of drinking water for Metro Vancouver. The 7.1 km (23,294 ft) twin, 3.8 m (12.46 ft) diameter tunnels will be used to transport raw water in one tunnel from the Capilano reservoir to the Seymour Treatment Plant and return treated water in the second tunnel to the Capliano water distribution network.

Project Scope:

AMIX worked with the team on-site providing a solution to produce grout and backfill that could meet engineering specifications to stabilize and seal the steel lining to the rock face in all shafts and tunnel portions.

The Need:

The standard batch plant was unable to provide a functional grout due to the high content of cementitious materials. The plant was producing a slurry with lumps the size of baseballs resulting in quality control issues, waste, wear on equipment, plugged lines and project delays.

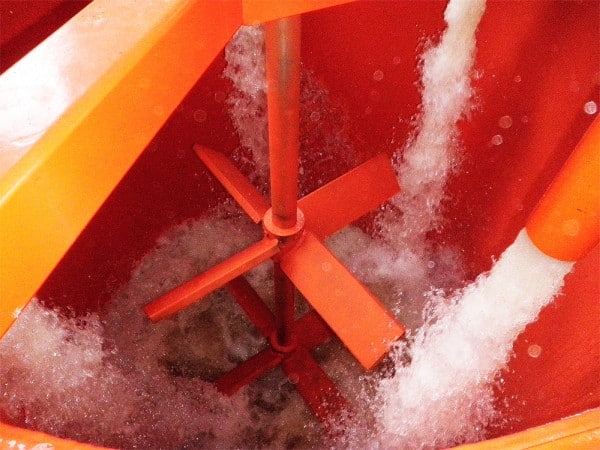

AMIX High Shear Colloidal Mixer (ACM) 4000

• High efficiency
• Fully automated
• Easy to maintain
• High quality control
• Easy to operate
• Self-cleaning
• Low waste
• Compact

The Solution

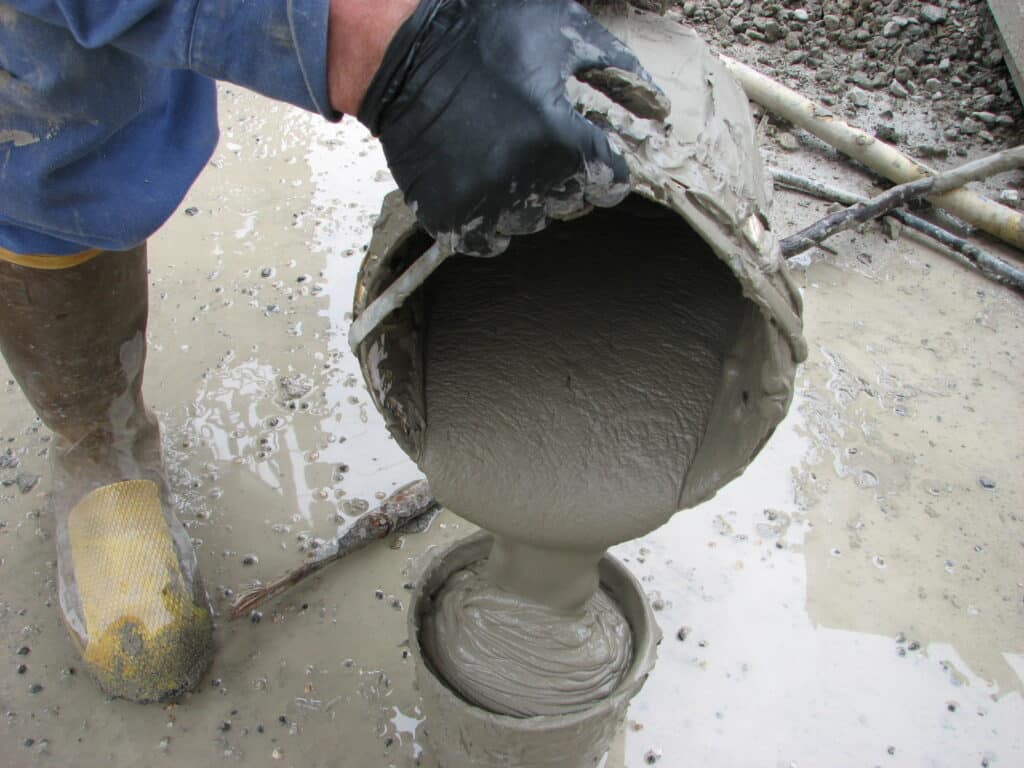

AMIX provided a conceptual design and built a custom solution, utilizing existing on-site equipment with the integration of a new high performance AMIX High Shear Colloidal Mixer (ACM) 4000 to produce a grout slurry for mixing with aggregates that was high in cementitious powder (@ 80% solids by weight) with a low water solids ratio of 0.25:1 with a final ratio of 0.3:1 to The ACM mixer produced a flowable, pumpable mix solution that surpassed engineering standards for integrity. The mixing system produced high quality, consistent, homogeneous grout that had little waste and incorporated quality control in a seamless manner that allowed for continuous flow of grout.

More Accessible
AMIX Colloidal Mixer - ACM 4000 was delivered with ease of site setup and transport
More Reliable
AMIX Provided best concepts for overall process, outputs, layouts and sizing of the new equipment and assisted in the design changes required to the existing plant.
More Efficient
Mixer base & access platform made installation and all other required ancillary items to complete the integration of the mixer to the existing system quick and effortless.
“AMIX designed a custom high shear colloidal mixer solution that increased production and improved quality. The consistent mix allowed us to reliably pump grout up to 1,000 m (3,300 ft). The equipment supplied was reliable and produced consistent slurry with minimal waste. " -Shane Yanagisawa

 Solving problems for today’s most challenging grout mixing & backfill projects.

Services and Equipment Provided:

• Assisted in the best concepts for overall process, outputs, layouts and sizing of the new equipment.
• Assisted in the design changes required to the existing plant.
• Assisted in the installation, start up and operating procedures of the new system.
• Design & Engineering of the Amix Colloidal Mixer – ACM 4000 c/w:

– Mixer capacity 3.5 m3 (926 gallons),
– Grout output/hour 30 m3 /hr (39 yds3 /hr)
– Two 4” x 8” Colloidal Mill’s powered by 56 Kw (75 hp) motors,
– Mixer base & access platfrom and,
– All other required ancillary items to complete the integration of the mixer to the existing system.

The benefit of working with Amix Systems Ltd. on this project, has been having a direct connection to fabrication and design, a quick response, and great service.
Shane Yanagisawa
General Manager, Frontier Kemper
