Key Takeaway
A high shear plant is a mixing system that applies intense mechanical energy to rapidly disperse and hydrate cement particles, producing stable, low-bleed grout with superior pumpability. In mining, tunneling, and civil construction, these systems deliver consistent mix quality that conventional paddle mixers cannot match.
Market Snapshot
- The industrial high shear mixers market was valued at USD 1.266 billion in 2024, projected to reach USD 1.743 billion by 2035 at a CAGR of 2.95% (Market Research Future, 2025)[1]
- The broader high shear mixer market is estimated at USD 845.6 million in 2025, forecast to reach USD 1,276.0 million by 2035 at a CAGR of 4.2% (Future Market Insights, 2025)[2]
- 76% of North American pharmaceutical plants have installed inline mixing systems (U.S. Food and Drug Administration via Fortune Business Insights, 2025)[3]
- IndexBox estimates a 4.2% CAGR for the global high-shear mixers market over 2026-2035 (IndexBox, 2025)[4]
What Is a High Shear Plant?
A high shear plant is a purpose-built mixing system that uses a high-speed rotor-stator mechanism or colloidal mill to apply intense shear forces to grout and cement-based materials, breaking down particle agglomerates and producing a homogeneous, stable mix. Unlike conventional drum or paddle mixers that rely on slow rotation to blend materials, a high shear plant forces materials through a narrow gap at high velocity, generating the mechanical energy needed for thorough particle dispersion. AMIX Systems has built its entire product line around this core technology, delivering colloidal grout mixing plants for demanding mining, tunneling, and heavy civil construction projects worldwide.
The result of this process is a grout with significantly reduced bleed, improved pumpability, and greater penetration into fractured rock or porous soil. These characteristics are important in applications where grout must travel through fine fissures, maintain pressure over a drill hole, or provide structural support in confined underground spaces. Colloidal mixing – the specific form of high shear mixing used in construction and mining – fully wets cement particles within seconds, creating a colloidal suspension that remains stable far longer than conventionally mixed grout.
High shear mixing plants range from compact, skid-mounted units for low-volume specialty work to large automated batch systems capable of producing over 100 m³/hr for mass soil mixing or cemented rock fill operations. The modular design approach used by leading manufacturers allows these systems to be containerized and transported to remote sites, then commissioned rapidly without extensive civil works. This portability makes the high shear plant particularly valuable in mining and infrastructure applications where the worksite itself is hundreds of kilometres from the nearest service centre.
How High Shear Mixing Technology Works
High shear mixing technology generates particle dispersion through a combination of hydraulic shear, turbulence, and cavitation within a colloidal mill or rotor-stator assembly. Water and cement are introduced into the mill, where the rotor accelerates the mixture to high peripheral velocity before it passes through the precision gap between the rotor and stator. This action subjects every particle to intense shear forces, breaking apart agglomerates and creating a fine, uniform suspension.
The physics behind this process matter directly to project outcomes. When cement particles are fully dispersed and hydrated at the mixing stage, the resulting grout exhibits lower viscosity at a given water-to-cement ratio, meaning it travels further and fills tighter voids. At the same time, the absence of dry agglomerates eliminates weak points in the set grout mass. For ground improvement work, tunnel segment backfilling, or dam curtain grouting, these properties translate directly into improved project quality and reduced rework.
Colloidal Mill vs. Rotor-Stator Assembly
Two primary mechanisms deliver high shear action in construction mixing plants. A colloidal mill passes the slurry through a fixed gap between a rotor and a mating stator surface, achieving very high tip speeds and repeatable shear intensity. A rotor-stator assembly uses multiple stages of intermeshing teeth to progressively break down particles. Both approaches produce superior grout compared to low-energy paddle mixers, but colloidal mill designs achieve fuller cement hydration in a single pass and require less recirculation time.
Automated batching control systems integrated into a modern high shear plant monitor water flow, cement feed rate, and mix density in real time. This automation ensures that each batch meets the specified water-to-cement ratio regardless of ambient temperature or cement bulk density variations. For safety-critical applications such as underground stope backfill or dam foundation grouting, this repeatability is a core requirement for quality assurance and regulatory compliance. Colloidal Grout Mixers – Superior performance results from AMIX Systems incorporate these automated controls as standard, supporting continuous 24/7 operation with minimal operator intervention.
Self-Cleaning Systems and Uptime
One practical challenge in any cement mixing operation is the buildup of set material inside the mixer and associated pipework. High shear plants with fully self-cleaning mill configurations flush the rotor-stator gap and discharge line automatically at the end of each batch cycle, preventing hardened grout deposits that would otherwise require manual chipping and extended downtime. This feature is especially valuable in underground mining environments where maintenance access is restricted and every hour of unplanned downtime has a direct cost impact.
Key Applications in Mining and Tunneling
High shear plant technology supports a wide range of ground engineering and construction applications, each placing specific demands on mix quality, output rate, and equipment configuration. The three most demanding sectors are underground mining, tunnel construction, and heavy civil ground improvement, all of which share a need for reliable, high-volume production of stable cement grout.
In underground mining, cemented rock fill (CRF) operations use a high shear mixing plant to produce large volumes of cement grout that is combined with waste rock to create a stable backfill mass. Mines that are too small to justify the capital cost of a paste plant achieve repeatable, quality-assured backfill using an automated high shear batch plant, as demonstrated in hard-rock mining operations across Northern Canada. The automated batching records cement content and mix ratios for each batch, creating the QAC data trail required by mine safety regulations.
Tunnel boring machine (TBM) support represents another important application. As a TBM advances, the annular gap between the tunnel lining segments and the surrounding ground must be filled immediately with grout to prevent ground settlement and water ingress. This annulus grouting demands continuous, reliable output of stable grout at precisely controlled pressure and flow rates. A compact high shear plant positioned at the tunnel portal or on a gantry within the tunnel provides the consistent mix quality needed to meet TBM advance rates on infrastructure projects in urban areas where surface settlement tolerances are measured in millimetres. Typhoon Series – The Perfect Storm plants are specifically configured for this type of confined-space application.
Ground Improvement and High Shear Plant Performance
Ground improvement techniques including deep soil mixing (DSM), jet grouting, and one-trench mixing all rely on a continuous supply of freshly mixed cement slurry delivered at the correct density and flow rate. In poor ground conditions common to Gulf Coast infrastructure projects or Alberta oil sands developments, the shear strength of the stabilized soil column depends directly on the quality and consistency of the injected binder. A high shear colloidal mixing plant produces a more uniform binder with better penetration characteristics than a paddle mixer, resulting in stronger and more predictable treatment columns.
High-volume one-trench soil mixing projects, such as linear seepage barriers for levees or containment walls, require output rates that only a large-scale high shear plant sustains. Systems capable of 60 to 100+ m³/hr allow a single central plant to supply multiple mixing rigs simultaneously through engineered distribution manifolds, reducing the number of plant relocations over a long linear alignment and improving overall project efficiency. Follow AMIX Systems on LinkedIn for project updates from active ground improvement and tunneling deployments.
Selecting the Right High Shear Plant
Selecting the correct high shear plant configuration requires matching equipment capacity, configuration, and control systems to the specific demands of the project and site conditions. The primary parameters are output rate, grout mix design, site access constraints, and the degree of automation required for quality assurance.
Output rate determines the size class of the plant. Low-volume applications such as micropile grouting, crib bag grouting in room-and-pillar coal mines, or small dam consolidation programs require 1 to 8 m³/hr. Mid-range applications including TBM annulus grouting, foundation grouting for dams, and mine shaft stabilization fall in the 10 to 40 m³/hr range. High-volume applications such as mass soil mixing, large-scale CRF production, or dam curtain grouting with multiple injection points demand 60 to 100+ m³/hr from a single plant or a multi-plant configuration.
Site Access and Containerization
Remote mining sites, offshore marine structures, and urban tunnel portals each impose different physical constraints on equipment configuration. A containerized high shear plant that fits within a standard ISO shipping container is transported by road, rail, or sea to virtually any site in the world and commissioned without specialized lifting equipment. Skid-mounted configurations offer greater flexibility for placement within underground declines or on marine barges where headroom or deck space is limited.
The availability of bulk cement supply versus bagged cement significantly affects the accessory equipment specification. High-volume operations benefit from silo-and-screw-feed systems that minimize manual handling and improve batching accuracy. Sites where bulk delivery is impractical use bulk bag unloading systems with integrated dust collectors to manage the high cement consumption rates of mass grouting programs while maintaining acceptable air quality for operators. Complete Mill Pumps – Industrial grout pumps that integrate directly with high shear mixing plants are available in multiple configurations to match specific pressure and flow requirements.
Automation and Quality Assurance
Modern high shear plants incorporate PLC-based control systems that automate water metering, cement feeding, mix cycle timing, and density verification. For projects where regulatory or contractual requirements mandate documented proof of grout quality – dam safety programs, mine backfill operations, or infrastructure contracts – automated data logging provides a complete batch-by-batch record of mix parameters. This capability reduces the administrative burden of quality management and provides defensible evidence of compliance in the event of a dispute or regulatory audit. Rental equipment options, such as the Typhoon AGP Rental – Advanced grout-mixing and pumping systems, offer the same automation capabilities as purchased plants, making high-specification equipment accessible for short-duration or single-project requirements without capital commitment.
Your Most Common Questions
What is the difference between a high shear plant and a conventional paddle mixer?
A high shear plant forces cement and water through a narrow rotor-stator gap at high velocity, applying intense mechanical energy that fully disperses and hydrates cement particles within seconds. A conventional paddle mixer uses low-speed rotating paddles to fold materials together, which leaves a proportion of cement particles in dry agglomerate form. The practical difference is significant: grout from a high shear colloidal plant has measurably lower bleed, higher stability, and better pumpability than grout from a paddle mixer at the same water-to-cement ratio. For applications such as dam curtain grouting or TBM annulus grouting, where the grout must remain fluid long enough to travel through fine fissures, this quality difference directly affects project outcomes. High shear plants also maintain consistent quality across continuous production runs, whereas paddle mixers produce variable results as operator attention fluctuates or mix times are shortened under production pressure.
What output rates are achievable with a high shear plant in mining applications?
Output rates from a high shear plant in mining applications range from approximately 1 m³/hr for small-scale crib bag grouting or micropile programs up to 100+ m³/hr for high-volume cemented rock fill or mass soil mixing operations. The specific output achievable depends on the plant model, the water-to-cement ratio of the grout, and whether the system operates in continuous or batch mode. Mid-range plants producing 20 to 60 m³/hr are the most common configuration for underground hard-rock mining backfill, where production demands are substantial but the capital investment of a full paste plant is not justified. For very large operations, multiple high shear plants are operated in parallel from a shared cement silo and control system, effectively multiplying output while maintaining the quality advantages of colloidal mixing technology. Equipment selection should always account for peak demand, not just average demand, to ensure the plant keeps pace with drilling and injection rates at maximum production.
Can a high shear plant be used for ground improvement applications like jet grouting and soil mixing?
Yes, a high shear plant is well-suited to jet grouting, deep soil mixing, and one-trench mixing applications. Jet grouting in particular requires a stable, low-bleed grout that is pumped at very high pressure through small-diameter monitor nozzles without segregating. The colloidal mix produced by a high shear plant meets these requirements more reliably than conventionally mixed grout. For deep soil mixing and one-trench mixing, the continuous high-volume output of a large-scale colloidal plant allows multiple mixing rigs to operate simultaneously from a single central source, improving equipment utilization and reducing the frequency of plant relocations along a linear treatment alignment. In regions such as Louisiana, Texas, and the Gulf Coast where soft, saturated soils require ground improvement before construction, high shear mixing plants are deployed for large-scale binder injection programs. The self-cleaning design of purpose-built construction mixing plants is particularly valuable in these applications, where long continuous production runs are standard.
What are the main maintenance requirements for a high shear plant?
Maintenance requirements for a high shear plant are lower than for conventional paddle or drum mixers because the colloidal mill design has fewer moving parts and no paddles or blades subject to impact wear from aggregate. The primary wear item in a colloidal mill is the rotor-stator assembly, which should be inspected at regular intervals and replaced when the running gap has opened beyond the manufacturer’s tolerance. Seals, bearings, and drive belts require scheduled inspection and replacement as part of a preventive maintenance programme. The most important daily maintenance action is ensuring that the self-cleaning flush cycle runs fully at the end of each production period, preventing set cement from hardening inside the mill. Peristaltic pumps used to transfer grout from the mixer to the injection point have a single wear item – the pump hose – which is replaced quickly in the field without specialized tools. Operators should maintain an inventory of critical spare parts, particularly rotor-stator sets and pump hoses, on site to minimize repair time.
Comparing High Shear Plant Configurations
Choosing between plant configurations depends on output requirements, site access, project duration, and automation needs. The table below compares the four main approaches used in mining, tunneling, and civil construction grouting to help identify the right fit for a given project.
| Configuration | Typical Output | Portability | Automation Level | Best Application |
|---|---|---|---|---|
| Containerized Colloidal Plant | 20-60 m³/hr | High – ISO container, road/sea | Full PLC batching & logging | Remote mining, dam grouting, CRF |
| Skid-Mounted High Shear Plant | 10-40 m³/hr | Medium – forklift or crane | Full or semi-automated | TBM support, urban tunneling, underground decline |
| Compact Rental Unit (Typhoon/Hurricane Series) | 2-8 m³/hr | Very high – van or small truck | Semi-automated | Micropiles, crib bag grouting, short-duration projects |
| Conventional Paddle Mixer | 2-20 m³/hr | Medium | Manual to semi-automated | Low-specification or budget-constrained applications |
AMIX Systems: High Shear Mixing Solutions
AMIX Systems designs and manufactures high shear plant systems for mining, tunneling, and heavy civil construction projects across North America and internationally. Our colloidal grout mixing plants are built around the patented AMIX High-Shear Colloidal Mixer (ACM) technology, which delivers fully dispersed, stable grout at outputs ranging from 2 m³/hr for precision grouting applications up to 110+ m³/hr for large-scale ground improvement programs.

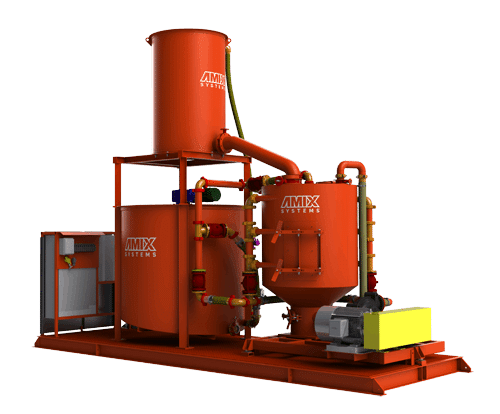

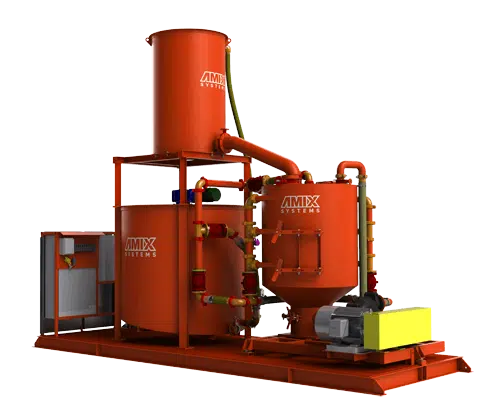

Our product range covers the full spectrum of project requirements. The Cyclone Series – The Perfect Storm provides high-output containerized solutions for demanding mining and dam grouting projects, while the Typhoon Series addresses mid-range tunneling and geotechnical applications. For rental needs, the Hurricane Series delivers high-performance colloidal mixing in a compact, easily deployed package. All plants incorporate fully self-cleaning mill configurations, automated PLC batching, and modular designs that simplify transport and on-site commissioning.
We serve clients in British Columbia, Alberta, Saskatchewan, Ontario, and Quebec in Canada, as well as hard-rock mining regions across the United States, Peru, Mexico, and West Africa. Our offshore and marine grouting configurations have been deployed in the UAE and Southeast Asia, where deck space and maintenance access are at a premium.
“The AMIX Cyclone Series grout plant exceeded our expectations in both mixing quality and reliability. The system operated continuously in extremely challenging conditions, and the support team’s responsiveness when we needed adjustments was impressive. The plant’s modular design made it easy to transport to our remote site and set up quickly.” – Senior Project Manager, Major Canadian Mining Company
To discuss your project requirements and identify the right high shear plant configuration, contact us at +1 (604) 746-0555, email sales@amixsystems.com, or visit our contact form.
Practical Tips for High Shear Plant Operations
Getting consistent results from a high shear mixing plant depends on both equipment selection and operational discipline. The following practices are drawn from real project experience in mining, tunneling, and ground improvement work.
Calibrate water meters before mobilization. The water-to-cement ratio is the single most important variable in grout quality. Even a small error in water metering compounds over thousands of batches. Verify flow meter calibration against a known volume before the plant goes into production, and re-check after any maintenance that involves removing or replacing flow meters.
Match cement delivery method to production rate. For outputs above 20 m³/hr, manual bagging is impractical and introduces variability. Specify a bulk cement silo with a load cell-based feed system, or use a bulk bag unloading station with integrated dust collection to manage cement consumption while maintaining a safe working environment for operators.
Run full flush cycles without shortcutting. Self-cleaning systems are only effective when the flush cycle runs to completion. Cutting the flush cycle short to save time is the leading cause of mill blockages in the field. Train operators to treat the flush cycle as a non-negotiable step, particularly at shift changes when time pressure is highest.
Establish a spares inventory before mobilizing to a remote site. At a minimum, carry a spare rotor-stator set, drive belts, shaft seals, and pump hoses for any peristaltic transfer pumps in the system. For offshore or underground applications, add a spare PLC module and critical electrical components, as lead times for electronic parts from remote sites extend to weeks.
Log and review batch data regularly during production. Automated batching systems generate a record of every batch including water volume, cement mass, and mix cycle time. Reviewing this data daily allows supervisors to catch drift in mix quality before it accumulates into a non-conformance, and provides the documentation trail needed for quality assurance reporting on regulated projects such as dam grouting or mine backfill programs.
Consider rental equipment for projects with defined start and end dates. Accessing a high-specification high shear plant through a rental programme eliminates capital risk on finite projects while ensuring the same mix quality as an owned asset. The Typhoon AGP Rental option provides a fully automated colloidal mixing and pumping system available for project-specific deployment.
Key Takeaways
A high shear plant is not simply a faster mixer – it is a fundamentally different approach to cement grout production that delivers measurably better mix quality, greater stability, and more reliable pumpability than conventional low-energy mixing. For mining operations, tunneling contractors, and civil ground improvement specialists, this quality advantage translates directly into project outcomes: stronger backfill, more reliable ground treatment, and reduced rework on safety-critical grouting programs.
The global high shear mixer market continues to grow as industries recognize the performance gap between colloidal and conventional mixing. Selecting the right plant configuration – matched to your output rate, site constraints, and automation requirements – is the first step toward that performance improvement.
To find the right high shear plant for your next project, contact the AMIX Systems team at +1 (604) 746-0555 or email sales@amixsystems.com. Our engineers are ready to recommend a configuration that fits your application and budget.
