A large paddle mixer is essential equipment for construction, mining, and tunneling projects – discover how to choose the right system, understand key specs, and improve grout mixing outcomes.
Table of Contents
- What Is a Large Paddle Mixer?
- How Large Paddle Mixers Work in Industrial Applications
- Types of Large Paddle Mixer Systems for Heavy Industry
- Selecting the Right Large Paddle Mixer for Your Project
- Frequently Asked Questions
- Comparison: Paddle Mixer vs. Alternative Mixing Technologies
- AMIX Systems: Industrial Mixing Solutions
- Practical Tips for Large Paddle Mixer Performance
- Key Takeaways
- Sources & Citations
Article Snapshot
A large paddle mixer is a horizontal or vertical industrial mixing unit equipped with rotating paddle-shaped blades that blend bulk dry, wet, or cementitious materials at high throughput. These systems are central to ground improvement, grouting, and cemented backfill operations in mining, tunneling, and heavy civil construction.
Large Paddle Mixer in Context
- Industrial paddle mixer capacity ranges up to 30,000 liters per batch (PerMix Mixers, 2026)[1]
- Continuous paddle mixer throughput reaches 34 m³/h for the largest models (Palamatic Process, 2026)[2]
- Andritz paddle mixers complete dry mixing cycles in 3-4 minutes at 10-12 batches per hour (Andritz, 2026)[3]
- Horizontal paddle mixer working capacity is 70-80% of total vessel volume (Screw Conveyor Bega, 2026)[4]
What Is a Large Paddle Mixer?
A large paddle mixer is an industrial blending machine that uses rotating paddle-shaped agitators to combine bulk materials – including dry powders, granulates, slurries, and cementitious grouts – within a trough or cylindrical vessel at production-scale volumes. These machines are the backbone of heavy industrial processing wherever uniform mixing at high throughput is required, from cement-based ground improvement work on Gulf Coast soft-ground projects to cemented rock fill operations in hard-rock mines across Canada, the United States, and Western Africa. AMIX Systems designs and supplies paddle mixing equipment purpose-built for the demanding requirements of mining, tunneling, and heavy civil construction projects worldwide.
Unlike bench-top or portable mixers, large-format paddle mixing systems operate at capacities that enable continuous or high-frequency batch production. According to published manufacturer data, industrial paddle mixer capacity reaches up to 30,000 liters per batch (PerMix Mixers, 2026)[1], while continuous models deliver throughput as high as 34 m³/h (Palamatic Process, 2026)[2]. These figures make paddle mixers a practical choice wherever conventional drum or ribbon mixers cannot match the required output or material handling characteristics.
The paddle mixer occupies a distinct position in the industrial mixing market. Its open paddle geometry allows gentle yet thorough blending that preserves particle structure, making it suitable for fragile granulates, high-density cementitious mixes, and materials requiring the introduction of liquid admixtures during the mixing cycle. Construction teams working on dam curtain grouting in British Columbia or annulus grouting for tunnel boring machine projects in urban Ontario benefit from the controlled mixing action that paddle systems deliver.
Key Applications of a Large Paddle Mixer in Heavy Industry
Large paddle mixers serve a broad range of applications across mining, tunneling, and civil construction. In grouting applications, they produce the consistent, homogenous slurries required for foundation consolidation, curtain grouting at hydroelectric dams, and segment backfilling behind advancing TBMs. In mining, paddle mixing systems support cemented rock fill programs where uniform cement content directly affects stope stability and worker safety. On ground improvement projects involving deep soil mixing or one-trench mixing in poor-ground regions such as Louisiana and Texas, high-output paddle or colloidal mixing plants blend binder with excavated material at rates that match continuous trenching equipment advancement. The AGP-Paddle Mixer from AMIX, for example, is engineered specifically for these production-intensive environments, offering AGP-Paddle Mixer – The Perfect Storm performance in a modular, transportable configuration.
How Large Paddle Mixers Work in Industrial Applications
Large paddle mixers operate through the mechanical action of paddle-shaped blades mounted on one or two rotating shafts inside a U-shaped or cylindrical trough, producing a folding, lifting, and recirculating material flow that achieves homogenous blending without the high-shear forces associated with high-speed impeller or colloidal mill designs. Understanding this mechanism is important for matching equipment to application requirements. As the PerMix Engineering Team describes, these systems use “large, carefully contoured paddles designed to lift and fold material gently” (PerMix Mixers, 2026)[1], which makes them well suited to materials that would degrade under aggressive mixing conditions.
The shaft rotates at relatively low speeds to produce this gentle action. Andritz paddle mixer specifications document a rotation speed of 29 r.p.m. (Andritz, 2026)[3], which is low enough to prevent segregation of mixed constituents while still providing thorough blending within short cycle times. The mixing element design is central to performance: according to Andritz Technical Specifications, “the mixing element consists of a shaft with radially adjustable paddles to ensure maximum mixing accuracy” (Andritz, 2026)[3]. Adjustable paddle angle allows operators to tune mixing intensity and material residence time for each specific product.
Liquid addition is an important capability for construction and grouting applications. The Palamatic Process Technical Team notes a “possibility to add up to 20% of liquid material” during paddle mixing (Palamatic Process, 2026)[2], which supports the production of cementitious slurries, grout, and stabilised soil mixes where water-to-cement ratio control is important. Liquid injection ports positioned along the trough allow staged addition to prevent clumping and ensure even distribution of binders through the bulk material.
Batch Cycle Times and Throughput Performance
Production efficiency in batch paddle mixing depends on cycle time and discharge speed. For dry mixing applications, Andritz documents mixing times of 3-4 minutes with a batch frequency of 10-12 batches per hour (Andritz, 2026)[3]. This high batch frequency makes large paddle mixing systems competitive with continuous designs for moderate-volume applications. Working volume also matters: the Screw Conveyor Bega Design Team confirms that “the mixing capacity is approximately 70 to 80% of the total volume of the container” (Screw Conveyor Bega, 2026)[4], meaning equipment must be sized with headspace in mind to achieve rated performance and prevent overflow during mixing.
For grout plant applications in mining and tunneling, the ability to process repeated batches rapidly with consistent mix quality directly affects project productivity. A poorly sized or inefficient paddle mixer creates a bottleneck that slows drilling, injection, or TBM advance rates. Matching mixer output to downstream pump capacity and injection rig demand is a core engineering task during system design, and it is one where AMIX Systems brings direct project experience across hundreds of ground improvement and grouting installations worldwide.
Types of Large Paddle Mixer Systems for Heavy Industry
Large paddle mixer systems fall into several categories based on configuration, mixing shaft arrangement, and intended throughput, each with distinct performance characteristics suited to different construction and mining applications. Selecting the correct category is the first step in equipment specification, before considering individual manufacturer options or detailed technical parameters.
Horizontal single-shaft paddle mixers are the most common configuration for medium-to-large batch applications. A single shaft carries paddles arranged in a helical pattern that moves material from the ends of the trough toward the centre, then lifts and folds it back. This configuration handles most dry powder, granulate, and moderate-viscosity slurry applications effectively. Horizontal twin-shaft paddle mixers use two counter-rotating shafts with intermeshing paddles, creating an intense blending zone between the shafts that reduces mixing time and improves uniformity for dense or viscous materials such as thick cementitious grouts used in dam foundation work.

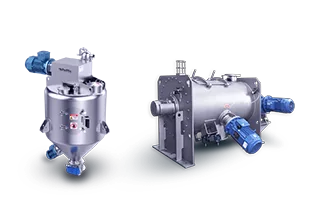

Vertical paddle mixers orient the shaft vertically inside a cylindrical vessel. While smaller than horizontal designs, vertical configurations excel where floor space is limited – a common constraint on underground mining levels or confined tunnel launch shafts. For high-volume applications such as cemented rock fill in underground hard-rock mines across Ontario, Quebec, or the Sudbury Basin, horizontal high-output systems with outputs above 100 m³/h are preferred, matching the fill rates required to maintain stope production schedules. The Colloidal Grout Mixers – Superior performance results page details how AMIX high-shear colloidal technology integrates with batch and continuous mixing plant configurations for these demanding applications.
Continuous vs. Batch Large Paddle Mixing
The choice between continuous and batch paddle mixing is driven by project throughput requirements, mix design consistency needs, and available space. Continuous paddle mixers feed material at a constant rate through the trough, with residence time controlled by screw or paddle pitch and shaft speed. They are well suited to linear ground improvement projects such as one-trench soil mixing on Gulf Coast infrastructure works, where sustained binder delivery without interruption matches excavation advance rates. Batch systems offer tighter control over individual mix proportions, which is important for quality-assured cemented backfill programs where cement content per batch must be recorded for regulatory compliance and mine safety documentation. AMIX automated batch systems support this requirement through integrated data logging that records mix recipes for quality assurance control, an important capability in operations involving regulatory oversight in Canadian and US underground mining jurisdictions.
The PerMix Engineering Team highlights that “paddle geometry is selected based on material fragility, bulk density, and desired mixing intensity” (PerMix Mixers, 2026)[1]. This principle applies equally to the choice between continuous and batch configurations: fragile aggregates or controlled-release materials favour gentle continuous mixing, while high-density grouts requiring precise water-to-cement ratios favour controlled batch operation with automated batching systems. For projects that transition between phases – such as a TBM drive followed by consolidation grouting – modular AMIX systems are reconfigured to match changing production modes without replacing core equipment.
Selecting the Right Large Paddle Mixer for Your Project
Selecting the correct large paddle mixer requires systematic evaluation of material properties, required output volume, site constraints, and integration with downstream pumping and distribution equipment – a process where errors in specification lead to costly equipment mismatches and project delays. The evaluation should begin with a clear definition of the material to be mixed, including bulk density, particle size distribution, abrasiveness, and moisture content, before moving to throughput and configuration decisions.
Material properties directly determine paddle geometry, shaft speed, and trough liner material. Abrasive cementitious mixes used in rock fill operations require hardened steel or ceramic-lined troughs and paddles to resist wear over extended operating cycles. High-density slurries with specific gravity above 1.8 impose significant torque loads on drive systems, requiring oversized motors and strong gearboxes. For offshore grouting applications in UAE marine environments or Florida land reclamation projects, corrosion-resistant materials and sealed bearing assemblies are important for reliable long-term operation in salt-laden atmospheres.
Output volume requirements must account for both average production rate and peak demand. On TBM projects, grout injection behind the shield is time-critical and the mixing plant must deliver at the peak injection rate without interruption. Sizing to average demand rather than peak demand creates injection delays that compromise annulus grout quality and segment alignment. The working volume guideline – 70-80% of total vessel volume (Screw Conveyor Bega, 2026)[4] – means the nominal vessel volume must be approximately 25-43% larger than the target batch volume to operate within design parameters.
Site and Logistics Considerations for Large Paddle Mixer Selection
Site access, available power, and transport logistics significantly influence equipment selection for remote mining and construction locations. Containerized or skid-mounted paddle mixing plants are shipped in standard ISO containers to remote sites in Peru, West Africa, or the Australian Queensland coalfields without requiring heavy lift cranes or specialised transport. AMIX modular container systems are designed around this constraint, enabling complete grout plant assembly from containerised components with minimal on-site civil works. The Modular Containers – Containerized or skid-mounted solutions page outlines the available configurations for projects with demanding logistics requirements. For projects requiring a rental solution without capital outlay – such as finite-duration dam repair programs or single-phase tunnel grouting campaigns – the Typhoon AGP Rental – Advanced grout-mixing and pumping systems for cement grouting, jet grouting, soil mixing, and micro-tunnelling applications offers a fully self-cleaning, containerized grout plant available for project-specific deployment. Power availability is a related constraint: diesel-driven paddle mixing plants extend deployment options to locations without reliable grid power, which is common on early-stage mining sites across Saskatchewan, Alberta, and remote Queensland.
Your Most Common Questions
What is the difference between a large paddle mixer and a colloidal grout mixer?
A large paddle mixer blends materials through the mechanical action of rotating paddle blades in a trough, using a gentle lifting and folding motion suited to bulk dry powders, granulates, and moderate-viscosity slurries. A colloidal grout mixer uses a high-shear rotor-stator mill to break cement agglomerates into fine particles, producing a fully hydrated colloidal suspension with very low bleed and excellent pumpability. Colloidal mixers are specifically engineered for cement-water grouts used in pressure grouting, foundation work, and cemented backfill applications where mix stability and particle dispersion quality are important. Paddle mixers are preferred where material fragility must be preserved, where liquid-to-solid ratios are lower, or where the mix includes coarse aggregate or granulate components that would jam a colloidal mill. Many complete grout plant systems use both technologies: a colloidal mixer for the primary grout component and a paddle or agitator tank for admixture blending or holding mixed product at consistent viscosity ahead of pumping. For mining and tunneling applications requiring the highest grout quality, AMIX colloidal mixing systems deliver superior particle dispersion and mix stability compared to paddle-only designs.
What capacity should a large paddle mixer be for a cemented rock fill operation?
Cemented rock fill programs require mixing plant capacity sized to match the fill rate demanded by the stope schedule, which varies considerably between operations. Small underground mines in the Appalachian coalfields or Saskatchewan potash belt require only 5-20 m³/h of cemented fill slurry, while large hard-rock gold or copper operations in Peru or West Africa need 50-100 m³/h or more to keep void filling ahead of mining advance. The working volume constraint – approximately 70-80% of total vessel volume – means the nominal mixer vessel must be sized above the target batch volume. For a 1 m³ batch target, a vessel of at least 1.25-1.43 m³ is required. Continuous paddle mixer configurations delivering up to 34 m³/h are suitable for medium-scale operations, while high-output colloidal batch systems are preferred for large-scale fill programs requiring consistent cement content verification for quality assurance control. AMIX SG-series systems provide automated batching with data logging, which supports the quality documentation requirements common in regulated underground mining jurisdictions across Canada and the United States.
Can a large paddle mixer handle cementitious grout with liquid admixtures?
Yes. Large paddle mixers are well suited to cementitious grouts that incorporate liquid admixtures such as accelerators, retarders, plasticisers, and bentonite slurries. Continuous paddle mixer designs support liquid addition of up to 20% of the total mix volume through injection ports positioned along the trough length, allowing staged introduction that prevents localised clumping and ensures even distribution. For grout applications requiring precise admixture dosing – such as two-component grouts used behind TBM segments on urban transit projects or accelerated grouts for rapid void filling in dam remediation – automated admixture systems that meter and inject liquid components at programmed rates are integrated with the paddle mixing plant controls. AMIX admixture systems are designed for accurate and reliable liquid addition, compatible with both paddle and colloidal mixing plant configurations. Water-to-cement ratio control through automated liquid metering is a key feature for quality-assured grouting programs, where mix design consistency directly affects grout strength development and long-term durability in ground improvement applications.
How do I maintain a large paddle mixer used in abrasive construction applications?
Maintaining a large paddle mixer in abrasive construction or mining environments requires a systematic approach focused on wear monitoring, lubrication, and cleaning discipline. The primary wear items are the paddle blades and trough liner, which erode progressively when handling abrasive cementitious mixes or slurries containing coarse aggregate or rock fines. Regular inspection intervals – at every 200-500 operating hours depending on mix abrasiveness – allow wear measurement before it affects mixing efficiency or batch consistency. Paddle blades should be replaced or rebuilt when wear exceeds 15-20% of original section thickness to maintain mixing action and energy efficiency. Shaft seal integrity is important in wet mixing applications: failed seals allow grout penetration into bearings, causing rapid bearing failure and unplanned downtime. Self-cleaning mixer designs, such as those used in AMIX systems, reduce grout buildup inside the vessel between batches, lowering the labour required for cleaning and reducing the risk of hardened material causing mechanical damage at start-up. Keeping detailed maintenance logs aligned with batch records supports warranty management and enables predictive replacement scheduling that minimises unplanned stoppages on time-sensitive projects.
Comparison: Paddle Mixer vs. Alternative Mixing Technologies
Choosing between a large paddle mixer and alternative industrial mixing technologies requires evaluating throughput, mix quality, maintenance requirements, and suitability for the target material. The table below compares four common approaches used in construction, mining, and tunneling grouting applications to help engineering and procurement teams make informed equipment decisions.
| Technology | Typical Throughput | Mix Quality | Best Application | Maintenance Level |
|---|---|---|---|---|
| Large Paddle Mixer | Up to 34 m³/h continuous[2] | Good for bulk blending; moderate for cementitious grout | Cemented fill, soil mixing, dry powder blending | Moderate – wear on paddles and liner |
| Colloidal Grout Mixer | 2-110+ m³/h batch | Excellent – low bleed, high particle dispersion | Pressure grouting, TBM backfill, dam grouting | Low – self-cleaning, fewer moving parts |
| Ribbon Blender | Up to 1,500 cubic feet capacity[4] | Good for dry powders; limited for wet mixes | Dry powder blending, fertilizer, feed | Moderate – ribbon wear in abrasive service |
| Drum / Barrel Mixer | Low – under 2 m³/h | Adequate for simple mortar and concrete | Small-volume site mixing | Low – simple design, limited to low volume |
AMIX Systems: Industrial Mixing Solutions for Mining and Construction
AMIX Systems designs and manufactures automated grout mixing plants, paddle mixing systems, and related pumping equipment for mining, tunneling, and heavy civil construction projects worldwide. Operating from Vancouver, British Columbia, with project experience across Canada, the United States, the Middle East, Australia, and South America, AMIX delivers custom-engineered solutions for the most demanding mixing and pumping challenges in ground improvement, cemented backfill, and infrastructure grouting.
Our AGP-Paddle Mixer – The Perfect Storm is specifically engineered for high-output construction mixing applications, combining strong paddle mixing action with the automated batching controls and modular containerized design that remote and underground sites require. For applications where superior grout stability is the priority, our colloidal mixing technology produces low-bleed, high-pumpability cement slurries that outperform conventional paddle-only designs in pressure grouting and TBM segment backfilling. The Complete Mill Pumps – Industrial grout pumps available in 4\”/2\” page presents the full range of pumping solutions that integrate with AMIX paddle and colloidal mixing plants for complete grout production and delivery systems.
Practical Tips for Large Paddle Mixer Performance
Getting the best performance from a large paddle mixer on construction and mining projects depends on equipment setup, operating discipline, and maintenance consistency. The following practical guidance applies across mining, tunneling, and heavy civil grouting applications where paddle mixing systems are deployed.
Match paddle configuration to the material. Paddle angle and pitch should be set for the target material before commissioning begins. For high-density cementitious mixes, paddles set at a steeper angle increase mixing intensity and reduce cycle time. For fragile granulates or dry powders, a shallower pitch reduces shear and preserves particle integrity. Always confirm working volume limits: filling above 80% of vessel volume reduces mixing effectiveness and risks overflow at the discharge end during continuous operation.
Control liquid addition rate. Introducing water or liquid admixtures too rapidly into a dry cementitious mix creates localised wet zones that resist blending and increase cycle time. Staged liquid addition through multiple injection points along the trough length produces more uniform hydration and reduces the risk of clumping. For automated AMIX batch plants, liquid metering systems are calibrated to inject at the rate validated during commissioning trials, ensuring consistency across every batch throughout the project duration.
Implement a regular inspection schedule. Paddle blade wear in abrasive service is progressive and predictable. Establishing baseline measurements at commissioning and checking wear at defined intervals – typically every 200-500 hours – allows blade replacement to be planned during scheduled maintenance windows rather than forced by unexpected failure. Recording wear rates per batch count allows prediction of replacement intervals as mix proportions or aggregate types change during the project.
Key Takeaways
A large paddle mixer is a proven, high-throughput blending solution for construction, mining, and tunneling applications that require uniform mixing of bulk dry materials, granulates, or cementitious slurries at production scale. Understanding the distinction between batch and continuous configurations, horizontal and vertical shaft arrangements, and paddle mixer versus colloidal mill technology allows engineering teams to specify equipment that matches actual project throughput, mix quality, and site logistics requirements. Working volume limits, paddle geometry selection, liquid addition capability, and maintenance requirements all affect long-term performance and must be evaluated during equipment specification. AMIX Systems provides paddle mixing plants, colloidal grout mixers, and integrated grout production systems designed for the most demanding industrial applications worldwide, with the modular and containerized configurations that remote mining and construction sites require. Contact the AMIX team to discuss large paddle mixer specifications for your next project.
Sources & Citations
- PerMix Mixers (2026). Paddle Mixer – Industrial Blending Equipment. PerMix Tec Co., Ltd. https://permixmixers.com/mixer/paddle-mixer/
- Palamatic Process (2026). Paddle Mixer – Continuous Industrial Mixing. Palamatic Process SAS. https://www.palamatic.com/en/paddle-mixer
- Andritz (2026). Paddle Mixer Technical Specifications. Andritz AG. https://www.andritz.com/products-en/group/feed-and-biofuel/mixing/paddle-mixer
- Screw Conveyor Bega (2026). Horizontal Paddle Mixer Design and Capacity. Bega Group. https://www.screwconveyorbega.com/paddle-mixer
