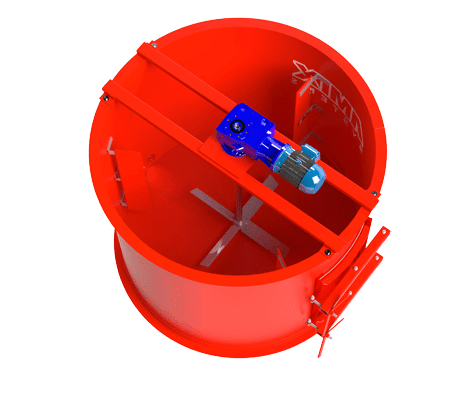

AAT – Agitated Tanks
AMIX designs and fabricates agitators and tanks used for construction, civil, and mining applications
Built to fit, and fit to last
AMIX Systems tanks are reliable, long-lasting and built in all sizes engineered for easy system integration or stand alone applications.
AAT-Agitated Tanks feature point/continuous level indication, water flush systems, are constructed in mild or stainless steel, and have variable RPM depending on mixed product (20 RPM – 150 RPM) with variable speed drive to fine tune agitator intensity.
The AAT can either stand alone with simple controls or be fully automated.
The AAT is built with advanced design features, that provide long-lasting reliable equipment.
|
Model |
Batch Capacity L |
Tank Diameter mm (feet/inches) |
Tank Height mm (feet/inches) |
|---|---|---|---|
|
AAT600 |
600 |
914 (3’/0″) |
914 (3’/0″) |
|
AAT1000 |
1,000 |
1220 (4’/0″) |
1220 (4’/0″) |
|
AAT2500 |
2,500 |
1422 (4’/8″) |
1524 (5’/0″) |
|
ATT4500 |
4,500 |
1982 (6’/6″) |
1524 (5’/0″) |
|
ATT6000 |
6,000 |
2134 (7’/0″) |
1828 (6’/0″) |
|
AAT8000 |
8,000 |
2438 (8’/0″) |
1828 (6’/0″) |
|
ATT12000 |
12,000 |
2895 (9’/6″) |
2286 (7’/6″) |
It’s time to simplify your grout mixing process.
SPECS, Options & Uses
Specifications
Batch Capacity 600L (158 usg) – 12,000L (3,170 usg)
Options & Uses
Offers bottom, side, and multiple discharge options, so you have easy and full access on demand.
Withstands long wear
Built with heavy-duty dual bearing gearboxes. This helps to absorb deflection of the shaft and minimize replacement of wearparts.
Optional inspection door for easy maintenance and cleaning
