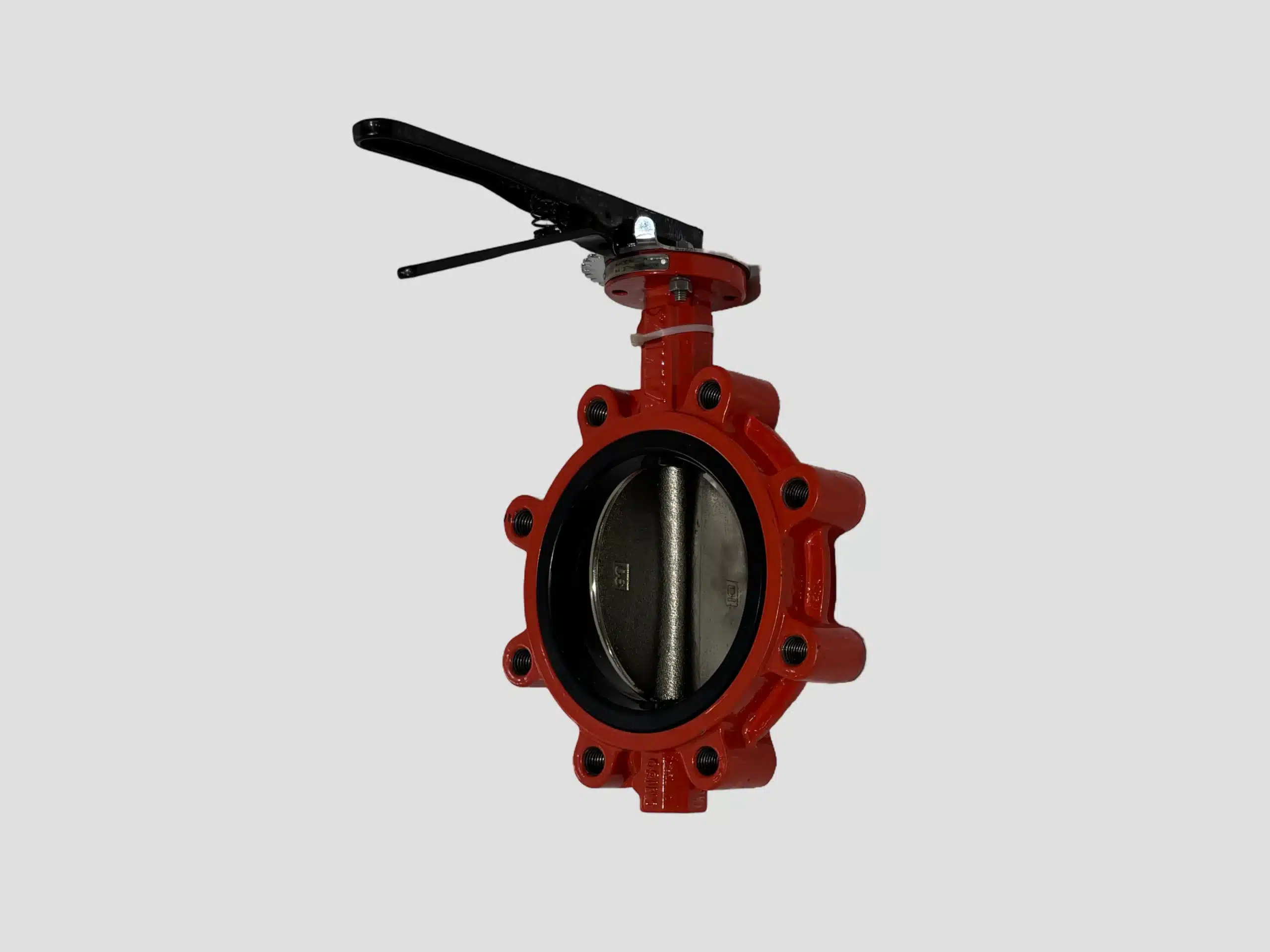

Lugged Butterfly Valve – Hand

Lugged Butterfly Valves with a 10-position hand lever are available in sizes 2″, 3″, 4″, 6″, 8″, 10″, and 12″. These valves are engineered for reliable manual flow control and are designed to withstand demanding applications. Constructed with a durable ductile iron body and disc, they provide long-lasting performance and structural strength. The EPDM seat ensures a dependable seal, making the valve suitable for various industrial and commercial uses. With a pressure rating of Class 150 and a temperature range of -15°C to 110°C, these valves are built for efficiency and versatility in a wide range of environments.

The lugged design offers secure and flexible installation, supporting dead-end service and bi-directional flow. The 10-position hand lever provides precise control, allowing operators to manually adjust the flow rate with accuracy. For applications requiring an alternative manual control option, a hand wheel can be selected upon special request, offering additional flexibility to suit specific preferences and operational needs.

To accommodate future system upgrades, these valves are designed to support the addition of a pneumatic actuator. The option to incorporate a double-acting or single-acting pneumatic actuator offers flexibility for transitioning to automated control as operational needs evolve. This forward-thinking design ensures adaptability and long-term usability.

Customization options are available to meet specific requirements. Upon request, alternate seat materials such as Silicone and Viton can be provided for applications involving higher temperatures or chemically aggressive media. The valve’s body and disc materials can also be upgraded to SS304 or SS316 stainless steel, delivering enhanced corrosion resistance for harsh or demanding environments.

Lugged Butterfly Valves with hand levers combine reliability, durability, and adaptability. Designed for manual operation today, with the flexibility to add automation or alternative controls in the future, they are a practical solution for diverse flow control needs.
