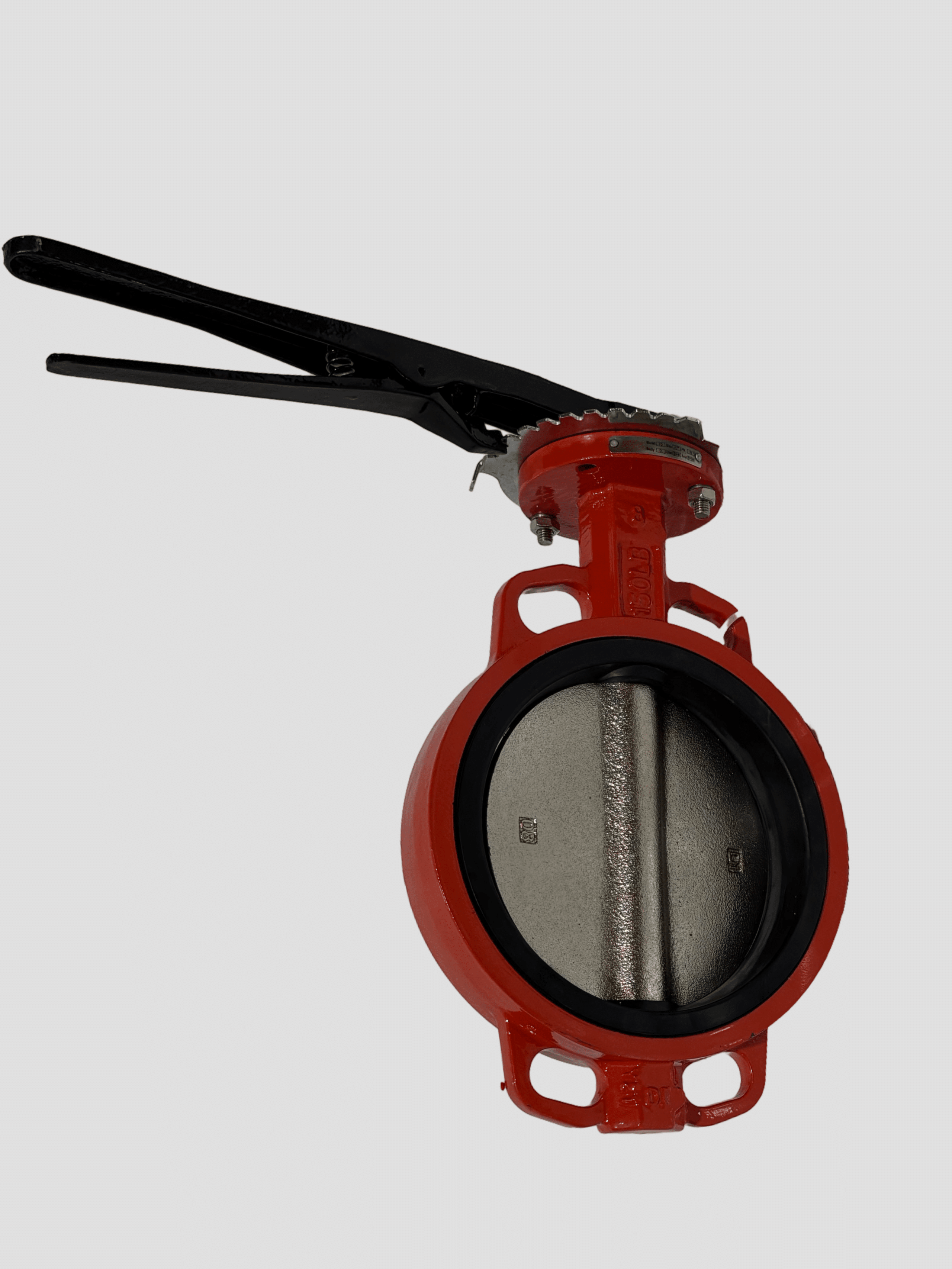

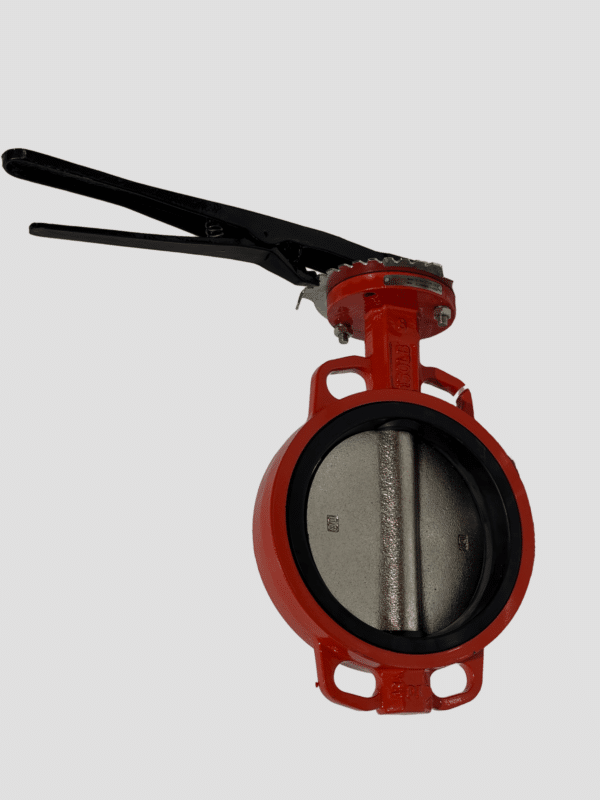

Wafer Butterfly Valve – Hand

Wafer Butterfly Valves with a 10-position hand lever are available in sizes 2″, 3″, 4″, 6″, 8″, 10″, and 12″. These valves are designed with a durable ductile iron body and disc, coupled with an EPDM seat to ensure reliable sealing and extended service life. With a pressure rating of Class 150 and a temperature range of -15°C to 110°C, they offer consistent performance across a variety of industrial and commercial applications.

The wafer design facilitates easy installation between flanges, making these valves an ideal choice for compact piping systems. The 10-position hand lever allows operators to precisely control flow, ensuring smooth and efficient operation. For applications that require an alternative manual control option, a hand wheel can be selected upon special request. This provides additional flexibility to meet operational preferences and system requirements.

These valves are also future-ready, offering the possibility of upgrading to an automated system. The design supports the addition of pneumatic actuators, such as double-acting or single-acting spring return options, to enable automated flow control as needs evolve. This forward-compatible feature provides adaptability for growing or changing operational demands.

Customization options are available to suit specific applications. Upon special request, alternate seat materials, including Silicone and Viton, can be provided to enhance compatibility with higher temperatures or chemically aggressive media. The valve’s body and disc materials can also be upgraded to SS304 or SS316 stainless steel, ensuring superior corrosion resistance for use in harsh environments.

Wafer Butterfly Valves with hand levers combine reliability, adaptability, and practicality. Designed for precise manual operation today, they also offer the flexibility for future automation and customization, making them a versatile solution for a broad range of flow control applications.
