Colodial plant systems deliver superior cement particle dispersion for mining, tunneling, and heavy civil construction — discover how high-shear mixing technology improves grout stability and pumping performance on demanding projects.
Table of Contents
- What Are Colodial Plant Systems?
- How Colodial Mixing Works in Grout Production
- Key Applications for Colodial Plant Systems
- Selecting the Right Colodial Plant System
- Frequently Asked Questions
- Comparison: Mixing Approaches
- AMIX Systems: Colodial Grout Plant Solutions
- Practical Tips for Colodial Plant Operation
- The Bottom Line
- Sources & Citations
Article Snapshot
Colodial plant systems produce cement-based grout by forcing particles through a high-shear mixing chamber, reducing particle size below 1 μm for superior dispersion. The result is a stable, low-bleed mix with enhanced pumpability, making these systems the standard choice for mining, tunneling, and ground improvement projects worldwide.
Colodial Plant Systems in Context
- Colloidal particle size ranges from 1 nm to 1 μm — the threshold that defines true colloidal dispersion (Wikipedia – Colloid, 2026)[1]
- Soil colloids have an upper diameter limit of 0.001 mm, illustrating the fine-particle physics that colodial plant systems replicate in cement grout (Biolscigroup – Soil Colloids, 2026)[2]
- The minimum particle size defining colloids is 1 nm, achieved through high-shear milling in modern grout mixing plants (PCC Group – Colloidal systems, 2026)[3]
- USDA ARS defines a colloidal dispersion as a system where particles of colloidal dimensions are dispersed in a continuous phase of a different composition (USDA ARS, 2026)[4]
Introduction
Colodial plant systems represent the benchmark for precision grout production in modern construction and mining. When ground conditions are poor, structural voids threaten stability, or tunneling schedules demand continuous, reliable mix output, the quality of the grout plant determines whether a project succeeds or falls behind. AMIX Systems, a Canadian manufacturer with deep expertise in automated grout mixing equipment, builds colodial plant systems specifically engineered for these high-stakes environments.
Understanding how colodial mixing technology works — and why it outperforms conventional batch mixing — is essential for project engineers, mining contractors, and tunneling specialists selecting equipment for critical applications. The physics of particle dispersion, grout stability, and pump compatibility all depend on the mixing method chosen at the outset.
This article explains the science behind colodial plant systems, how they are applied across mining, tunneling, and heavy civil construction, and what factors should guide equipment selection. We also address the most common questions from site engineers and project managers, compare mixing approaches, and provide practical operating guidance. Whether you are specifying a system for a major infrastructure tunnel in Ontario or a cemented rock fill operation in British Columbia, this guide gives you the technical foundation to make the right choice.
What Are Colodial Plant Systems?
Colodial plant systems are purpose-built grout mixing facilities that use high-shear milling to disperse cement particles into a stable, colloidal-state suspension. Unlike conventional paddle mixers that simply agitate water and cement together, a colodial plant forces the slurry through a narrow high-speed rotor-stator gap, breaking down particle agglomerates and achieving uniform dispersion throughout the mix. The result is a grout with far greater stability, lower bleed rates, and improved flow characteristics for pumping.
The science behind this process is well established. According to IUPAC, the colloidal state is defined as a state of subdivision such that the molecules or polymolecular particles dispersed in a medium have at least one dimension between approximately 1 nm and 1 μm.[1] When cement grout reaches this level of particle dispersion, it behaves as a true colloidal suspension rather than a coarse mechanical mixture. This distinction has direct consequences for grout penetration into fine fractures, resistance to bleed water separation, and long-term strength development in treated ground.

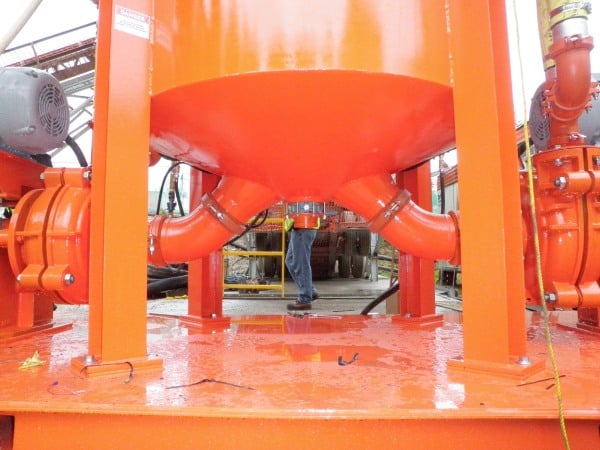

In practical terms, a colodial plant system consists of several integrated components: a water metering and batching unit, a high-shear colloidal mixer or mill, an agitated holding tank to maintain mix homogeneity after production, and one or more pumps to deliver the grout to injection points. Automated batching controls manage water-to-cement ratios with precision, eliminating operator error and ensuring repeatable mix quality batch after batch.
The tunneling sector provides a clear example of why these systems matter. During TBM segment backfilling on the Pape North Tunnel for Metrolinx in Ontario, contractors rely on consistent grout properties to fill the annular gap between the tunnel lining and surrounding ground. Variations in mix quality directly affect ground settlement above the tunnel. A colodial plant system eliminates that variability by producing the same stable mix every cycle, regardless of operator experience or ambient conditions on site.
PCC Group describes the fundamental chemistry clearly: a colloidal system with water as the dispersion medium is called a hydrosol.[3] Cement grout produced in a colodial plant is precisely this — a hydrosol where cement particles remain suspended in water at colloidal dimensions rather than settling out over time. This stability is what separates colodial plant systems from all other grout production methods available to the construction and mining industries today.
How Colodial Mixing Works in Grout Production

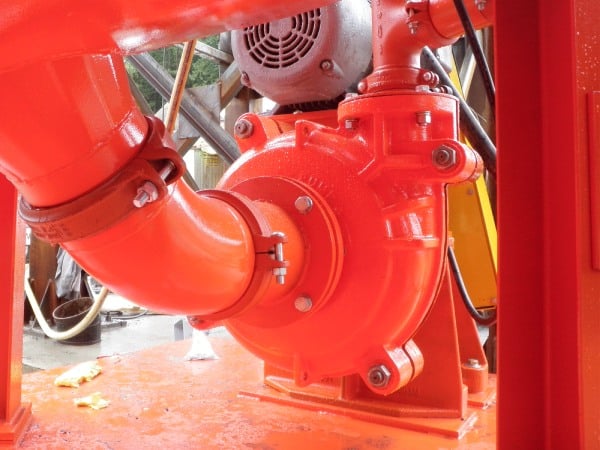

The high-shear mixing chamber is the defining component of any colodial plant system, and its operating principle determines every downstream quality metric for the grout produced. Inside the colloidal mill, a rotor spins at high velocity within a closely toleranced stator housing. As the cement and water slurry passes through the narrow gap between rotor and stator, intense hydraulic shear forces break apart cement particle agglomerates and drive dispersion toward the colloidal size range — particles with at least one dimension between 1 nm and 1 μm.[1]
This shear energy does more than reduce particle size. It also generates localized heat that accelerates hydration at particle surfaces, creating stronger bonding sites and improving the eventual compressive strength of hardened grout. The energy input is controlled by rotor speed, gap geometry, and the number of passes through the mill. Modern colodial plant systems allow engineers to tune these parameters for specific grout formulations, from standard Portland cement mixes to micro-fine cements used in tight rock fracture grouting.
After passing through the high-shear mill, grout moves to an agitated holding tank. The agitator maintains suspension without reintroducing air or damaging the colloidal particle structure already achieved in the mill. This holding phase is important on large projects where production must outpace injection demand — the tank acts as a buffer between the mixing plant and the injection rigs, decoupling production rate from pump delivery rate.
Batching automation plays an equally important role in consistent output. Automated water metering, cement weigh batching, and programmable logic controllers (PLCs) ensure that every batch meets the specified water-to-cement ratio. On projects requiring quality assurance data — such as underground cemented rock fill operations in hard-rock mines across Northern Canada — the PLC records each batch recipe and production parameter for retrieval and reporting. This data trail satisfies mine owner QAC (Quality Assurance Control) requirements and provides a defensible record in the event of any post-construction investigation.
The self-cleaning capability built into modern colodial mill designs reduces shutdown time significantly. Automated washout sequences flush the mill and transfer lines at the end of each production cycle, preventing cement buildup that would otherwise require manual cleaning and downtime. On 24/7 mining operations, this feature directly translates to higher equipment availability and lower maintenance labour costs. Colloidal Grout Mixers – Superior performance results from AMIX Systems incorporate all of these design principles into field-proven equipment used on projects across Canada, Australia, the UAE, and South America.
Key Applications for Colodial Plant Systems
Colodial plant systems serve a broad range of ground engineering applications, each placing distinct demands on mixing quality, output rate, and equipment configuration. Understanding which application type drives equipment selection helps project teams avoid over-specifying or under-specifying their grout plant.
Underground mining operations represent one of the highest-volume use cases. Cemented rock fill (CRF) operations in hard-rock mines require continuous, high-output grout production to fill stoped voids and restore ground mass stability. Mines operating in British Columbia, Ontario, and the Sudbury Basin rely on automated colodial plant systems to deliver consistent cement content in fill mixes, where even small variations in water-to-cement ratio affect the structural competency of the backfill. The AMIX SG40 system, for example, provides the automated batching and high-shear mixing needed for these demanding underground applications without the capital expenditure of a full paste plant.
Tunnel boring machine (TBM) support is another primary application. Annulus grouting — filling the gap between the TBM shield and the tunnel lining segments — requires grout that remains fluid long enough to pump through the TBM injection ports yet sets quickly enough to provide immediate ground support. Colodial plant systems produce low-bleed, high-stability grout that meets both requirements simultaneously. Projects including the Montreal Blue Line extension and the Dubai Blue Line metro have used automated grout plants for this application.
Dam grouting in British Columbia and Quebec involves injecting cement grout into foundation rock to create watertight curtains or consolidate fractured zones beneath hydroelectric structures. These applications demand precise water-to-cement control and consistent grout rheology across long injection sequences. A colodial plant system with automated batching provides the documentation trail required by dam safety regulators while maintaining the mix quality needed for effective sealing.
Ground improvement applications in the Gulf Coast region — including deep soil mixing and jet grouting on soft ground sites in Louisiana and Texas — use colodial plant systems to supply binder slurry to soil mixing equipment at high flow rates. The SG60 High-Output system achieves outputs exceeding 100 m³/hr, sufficient to supply multiple mixing rigs simultaneously from a single central plant. Cyclone Series – The Perfect Storm plants are configured for exactly this type of high-volume, continuous-duty ground improvement work.
Selecting the Right Colodial Plant System
Equipment selection for colodial plant systems starts with three core parameters: required output rate, site accessibility, and grout specification. Getting these right at the outset prevents costly equipment changes mid-project and ensures the plant matches actual production demand.
Output rate is the most straightforward parameter. Project engineers calculate the required grout volume per shift, account for injection efficiency and return flows, and specify a plant that can sustain that output with capacity margin for peak demand. For TBM annulus grouting, output requirements track directly with TBM advance rate. For cemented rock fill, output requirements track with the stope filling schedule. Colodial plant systems range from low-output modular units producing 1 to 6 m³/hr — suitable for micropile foundations and dam curtain grouting — up to high-output systems exceeding 100 m³/hr for large-scale soil mixing or mass fill operations.
Site accessibility shapes equipment configuration. Remote mine sites in Northern Canada, offshore platforms in the UAE, or confined urban tunnel shafts all impose physical constraints that a standard fixed-frame plant cannot meet. Containerized colodial plant systems solve this problem by fitting all components — mixer, agitated tank, pump, controls, and ancillary systems — within standard shipping container dimensions. The container arrives at site as a complete, pre-commissioned unit requiring only utility connections before production begins. Skid-mounted configurations offer the same portability advantage for sites where crane access allows placement without container stacking.
Grout specification drives mixer selection within the colodial plant. Standard Portland cement mixes for rock fill or annulus grouting use conventional colloidal mill configurations. Micro-fine cement mixes for tight fracture grouting in dam foundations require closer rotor-stator tolerances and higher rotor speeds to achieve the finer dispersion needed for grout penetration into hairline cracks. Specialty admixtures — accelerators, retarders, bentonite suspension agents — require admixture dosing systems integrated into the batching controls.
Automation level is a fourth consideration that affects both labour requirements and data quality. Basic colodial plant systems use manual batching with operator-controlled water and cement additions. Fully automated systems use load cells, flow meters, and PLC sequencing to produce each batch to a pre-programmed recipe with no operator intervention beyond cycle initiation. For safety-critical applications like dam grouting or backfill in operating mines, full automation is the standard because it eliminates human error and generates the QAC records required by regulators and mine owners. Typhoon AGP Rental – Advanced grout-mixing and pumping systems for cement grouting, jet grouting, soil mixing, and micro-tunnelling applications. provides a rental pathway for teams needing automated capability on a project-specific basis without capital investment.
Your Most Common Questions
What distinguishes a colodial plant system from a standard paddle mixer?
A colodial plant system uses a high-shear rotor-stator mill to force cement particles into a colloidal size range — between 1 nm and 1 μm — producing a stable, low-bleed suspension that resists particle settling.[1] A standard paddle mixer simply agitates water and cement together, leaving larger agglomerated particles that bleed water and reduce grout penetration into fine fractures. The practical difference is significant: colodial grout resists bleed for longer, pumps more reliably over long distances, and achieves better penetration into tight rock fractures or soil voids. For applications like dam curtain grouting or TBM annulus filling — where grout quality directly affects structural safety — the colodial mixing method delivers measurably superior results. Conventional paddle mixers remain appropriate only for high-volume, low-specification fills where mix quality requirements are minimal and cost is the primary driver.
How do automated batching controls improve grout quality in colodial plant systems?
Automated batching controls remove operator variability from the mix production process. Load cells measure cement weight to within a fraction of a percent, while calibrated flow meters control water addition to match the programmed water-to-cement ratio for each recipe. Programmable logic controllers (PLCs) sequence each batch automatically, log every parameter, and flag deviations from specified tolerances before grout leaves the mixer. This level of control is essential on safety-critical projects — underground backfill in operating mines, dam foundation grouting, or structural void filling — where inconsistent mix quality creates direct safety risk. The data records generated by automated systems also satisfy regulatory and mine owner QAC requirements, providing a retrievable log of every batch produced. On long-duration projects operating 24 hours per day, automated batching also reduces labour requirements and fatigue-related errors during night shifts.
What output range should I specify for a colodial plant system on a TBM tunnel project?
Output specification for TBM annulus grouting depends primarily on the TBM advance rate and the annular void volume per ring. A typical large-diameter TBM advancing at two to four metres per hour in urban infrastructure tunneling generates annular fill demand in the range of two to eight cubic metres per hour for standard segment geometries. A colodial plant system in the Typhoon Series range — producing two to eight m³/hr — matches this demand with appropriate capacity margin. For faster-advancing machines or larger-diameter bores, a Cyclone Series plant with higher output capacity provides the buffer needed to maintain continuous fill without interrupting TBM advance. Always specify plant output at least twenty percent above calculated peak demand to accommodate grout return flows, line losses, and unplanned production interruptions. Pre-commissioning the plant and verifying actual output before TBM launch prevents schedule delays once tunneling begins.
Can colodial plant systems be used for offshore or marine grouting applications?
Colodial plant systems are well suited to offshore and marine grouting applications when configured in containerized or skid-mounted formats that fit standard barge or platform deck layouts. Offshore jacket and pile grouting, marine void filling for land reclamation, and subsea foundation grouting all require the stable, low-bleed grout that colodial mixing produces. The self-cleaning mixer design is particularly valuable offshore, where freshwater washdown access is limited and cement buildup in the mill would otherwise require extended manual cleaning during narrow maintenance windows. Modular container configurations allow complete plant assembly and pre-commissioning onshore, then direct barge or crane placement at the offshore location with minimal on-site assembly. Projects in the UAE — including jacket grouting in Abu Dhabi waters — have successfully used containerized colodial plant systems operating in continuous salt spray environments with high equipment availability throughout the marine construction schedule.
Comparison: Mixing Approaches for Grout Production
| Approach | Particle Dispersion | Bleed Resistance | Automation Capability | Best Application |
|---|---|---|---|---|
| Colodial Plant System (High-Shear Mill) | Colloidal range: 1 nm–1 μm[1] | High — stable suspension | Full PLC batching, QAC data logging | TBM grouting, dam curtain, CRF, offshore |
| Conventional Paddle Mixer | Coarse — particle agglomerates remain | Low — bleed common without additives | Manual or semi-automated | Low-specification bulk fills only |
| High-Speed Vortex Mixer | Moderate — better than paddle, less than colloidal | Moderate — requires admixtures | Semi-automated batching | General construction grouting |
| Pre-Bagged / Site-Mixed Grout | Variable — operator dependent | Low to moderate | None | Small repairs, non-structural fills |
AMIX Systems: Colodial Grout Plant Solutions
AMIX Systems designs and manufactures colodial plant systems for the full range of mining, tunneling, and heavy civil construction applications. Based in Vancouver, British Columbia, the company has delivered automated grout mixing equipment to projects across Canada, the United States, the UAE, Australia, and South America since 2012. Every system is custom-engineered to match specific project output requirements, site access constraints, and grout specification demands.
The core product range includes the Typhoon Series for low-to-medium output applications, the Cyclone Series for mid-to-high output projects, and the SG60 High-Output system for large-scale ground improvement work requiring outputs above 100 m³/hr. All series incorporate the AMIX High-Shear Colloidal Mixer (ACM) technology, automated batching controls, self-cleaning mill circuits, and agitated holding tanks. Containerized and skid-mounted configurations are available across the range, enabling deployment to remote mine sites, confined urban shafts, and offshore platforms.
For project teams needing high-performance colodial plant capability without capital investment, the AMIX rental program provides Typhoon AGP systems available for short or long-term project hire. Rental units arrive pre-commissioned, reducing site setup time and enabling rapid mobilization for urgent or time-critical applications like emergency dam repair or TBM launch support.
“We’ve used various grout mixing equipment over the years, but AMIX’s colloidal mixers consistently produce the best quality grout for our tunneling operations. The precision and reliability of their equipment have become essential to our success on infrastructure projects where quality standards are exceptionally strict.” — Operations Director, North American Tunneling Contractor
For pumping solutions compatible with colodial plant systems, the Peristaltic Pumps – Handles aggressive, high viscosity, and high density products and HDC Slurry Pumps – Heavy duty centrifugal slurry pumps that deliver complete the grout plant system, handling abrasive and high-viscosity grout mixes with minimal wear. Contact AMIX Systems at +1 (604) 746-0555 or sales@amixsystems.com to discuss your project requirements and receive a customized equipment recommendation. Follow the latest project updates and technical insights on Follow us on LinkedIn.
Practical Tips for Colodial Plant Operation
Getting maximum performance from a colodial plant system requires attention to several operational factors that directly affect mix quality, equipment availability, and project outcomes.
Water quality is the first variable to control. Hard water with high mineral content can affect cement hydration kinetics and alter grout rheology in ways that are difficult to predict without site-specific trial mixes. Test site water before commissioning the plant and adjust batching recipes if conductivity or pH readings fall outside normal ranges. Where site water quality is poor, a dedicated water treatment or conditioning unit upstream of the batching controls prevents inconsistent results.
Cement storage and handling affects both quality and dust exposure. Bulk bag unloading systems with integrated dust collection, like those offered by AMIX, maintain operator safety in confined underground environments while supporting the high cement consumption rates of continuous production. Keep cement bags or bulk storage sealed and protected from moisture at all times — even partial hydration from atmospheric humidity alters particle surface chemistry and reduces the effectiveness of high-shear dispersion in the colloidal mill.
Mill gap settings and rotor speed require verification at commissioning and after any mill maintenance. The rotor-stator gap determines shear intensity and therefore particle dispersion quality. A gap that has widened through wear produces coarser grout with reduced bleed resistance. Establish a routine inspection interval for mill wear components and replace the rotor or stator liner before gap wear exceeds manufacturer tolerances.
For projects using admixtures — accelerators, retarders, or plasticizers — integrate admixture dosing into the automated batching sequence rather than adding admixtures manually at the mixer outlet. Manual addition introduces dose variability that undermines the precision the colodial plant system is designed to deliver. Automated admixture systems meter additions by weight or volume relative to cement content, maintaining the correct dose ratio regardless of batch size or production rate changes during the shift. Stay connected with industry developments and equipment updates through Follow us on Facebook and Follow us on X for the latest news from AMIX Systems.
The Bottom Line
Colodial plant systems set the standard for grout production quality in mining, tunneling, and heavy civil construction. By achieving particle dispersion in the colloidal size range — from 1 nm to 1 μm — these systems produce stable, low-bleed grout that outperforms every conventional alternative in demanding ground engineering applications. The combination of high-shear milling, automated batching, and self-cleaning mill circuits delivers consistent mix quality, reduced downtime, and the QAC data records required by modern project standards.
Whether you are planning a cemented rock fill program in an underground hard-rock mine, specifying annulus grout for a major TBM tunnel, or designing a dam curtain grouting system for a hydroelectric project in British Columbia, the right colodial plant system is the foundation of project success. AMIX Systems brings proven expertise in custom-engineered colodial grout plants to projects of every scale and location.
Contact AMIX Systems today at +1 (604) 746-0555, email sales@amixsystems.com, or visit the AGP-Paddle Mixer – The Perfect Storm product page to discuss your project requirements with our engineering team.
