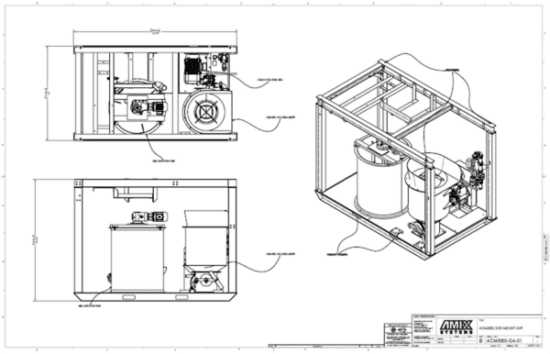

Containerized or Skid – Mounted
Our designs take advantage of clean and simple mill configurations to ensure your grout plant always operates at near or full capacity.
Amix Grout Plants (AGP) are advanced grout mixing and pumping systems. The AGP is built using modular design principles with a focus on ease of use and scalability. The AGP utilizes clean and simple mill configuration with less moving parts.
The AMIX Systems AGP Typhoon line of mixing plants are designed for lower output applications and are available in basic manual hand-fed, semi-automated and/or fully-automated configurations. The AGP colloidal grout plants produce high outputs while maintaining a low carbon footprint.
The Typhoon’s low consumption of wear components and maintenance makes it the best-valued grout plant available on the market. With the automated configurations options, the Typhoon would be self-cleaning and can operate 24/7.
AGP – Typhoon

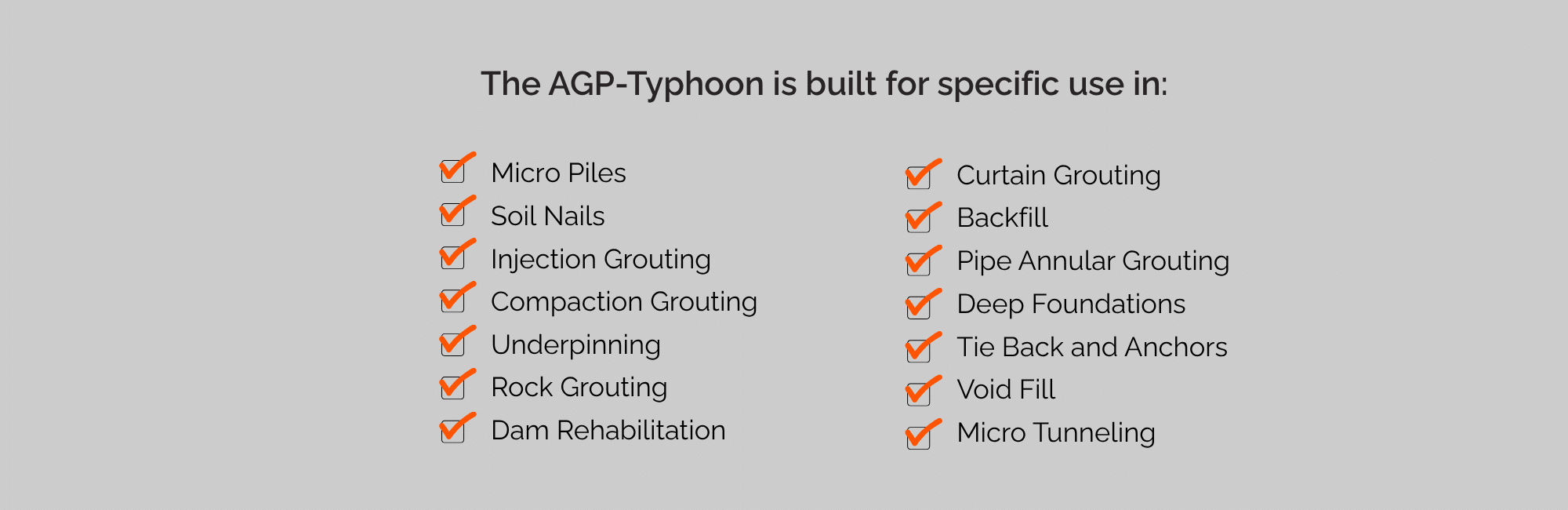

The AGP is built for specific use in:
- Cement grouting
- Jet grouting
- Soil mixing
- (TBM) Two component grout
- Micro tunneling lubrication & grouting systems
- Annulus backfill
- Bentonite & other powdered mixing
- Micropile grouting
- Soil nail grouting
- Paste backfill
- Cemented rockfill (CRF)
The AMIX Advantage
Our design advancements keep your plants operating at near 100% availability and are automated to free up personnel for other requirements.
ACM Mill Typhoon 12097_c3c892-8b> |
Max output m3/hr 12097_101464-a2> |
Max flow gpm 12097_2ad33c-e1> |
Max kW 12097_e6b352-b6> |
Max hp 12097_936496-bc> |
Max rpm 12097_841847-d5> |
Inlet dia. in.(mm) 12097_6c2116-33> |
Outlet dia. in. (mm) 12097_b7b6e8-8b> |
High sheer mixing blade impeller dims. in. (mm) 12097_163a94-ea> |
---|---|---|---|---|---|---|---|---|
4 x 2 12097_4a6346-a3> |
114 12097_c4baf0-89> |
500 12097_e500ec-09> |
37 12097_faabd3-7b> |
50 12097_b4a40b-23> |
2,700 12097_63cd3c-b1> |
4″ (102) 12097_1f41ce-5e> |
2″ (51) 12097_4071f2-45> |
W3″ (76) x Dia. 9″ (228) 12097_49dec0-87> |

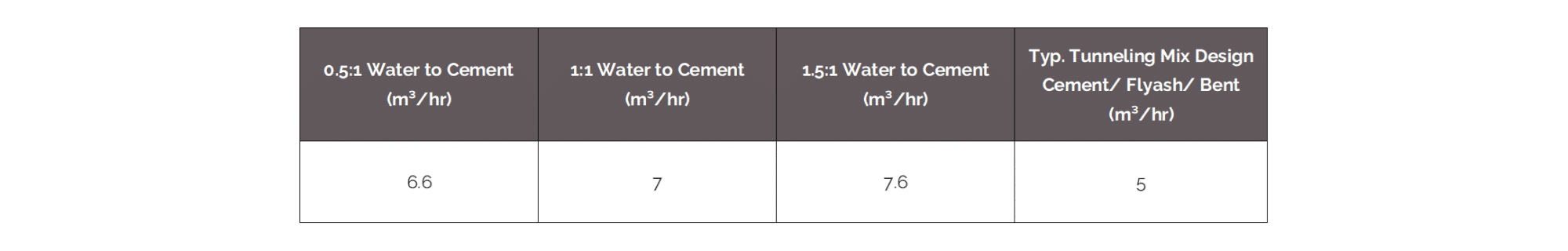

AGP Typhoon 12097_3ce2ec-ad> |
4 x 2 Collidal mill 12097_f6023d-22> |
Hand feed output m3/hr 12097_5ca9dd-3c> |
Automated output m3/hr 12097_c2ff49-60> |
Hand feed output gpm 12097_c0995f-80> |
Automated output gpm 12097_2dd51e-7e> |
Mixer size m3 (usg) 12097_878bb4-f6> |
Agitation tank m3 (usg) 12097_03097b-2f> | 12097_f9dfcc-00> |
---|---|---|---|---|---|---|---|---|
AGP – 2 12097_c81a76-dd> |
1 12097_6691b2-b5> |
2 12097_079d5f-4d> |
N/A 12097_a94224-c1> |
11 12097_7e3d29-5c> |
N/A 12097_dc2941-62> |
0.2 (52) 12097_f42496-e8> |
0.4 (106) 12097_890ba5-10> | 12097_1e20c6-91> |
AGP – 3 12097_13ba77-25> |
1 12097_32f22a-39> |
2.3 12097_aa692c-f9> |
5 12097_86c211-d5> |
13 12097_62d289-45> |
26 12097_f3afaf-30> |
0.3 (80) 12097_789f92-29> |
0.6 (160) 12097_86547b-94> | 12097_969090-ef> |
AGP – 5 12097_93ac25-08> |
1 12097_21b253-54> |
2.6 12097_ec77a5-f5> |
8 12097_c55f6e-49> |
22 12097_70880c-8e> |
35 12097_1c4a3b-80> |
0.4 (106) 12097_c1c4cc-f0> |
1.0 (264) 12097_f860cd-2c> | 12097_314292-7c> |
It’s time to simplify your grout mixing process
SPECS, Options & Uses
Specifications
AGP – TYPHOON HIGH SHEAR MIXING SYSTEM
Minimum Output – 2 – 8 m3/hr (0.5 – 35 gpm)
HEAVY-DUTY 4/2C-MA HIGH SHEAR COLLOIDAL MILLS
203 mm (4”) inlet
102 mm (2”) outlet
Max Output – 114 m3/hr
Max Flow – 500 gpm
Options & Uses
Containerized or Skid-Mounted
Manual or fully automated
Grout Pumps
Agitation Tanks
Silos & Hoppers
Feed Systems
Screw Conveyors and other related material handling systems
Dust Collection
Admixture System
Diesel electric generator unit to power grout plant electrical system
